LTP350QV-E06 Samsung LCD Panel , 60 cd / m² Industrial Lcd Screen 53.64×71.52 mm

Product Categories
N&S ELECTRONIC CO., LIMITED
Contact Now

LTP350QV-E06 Samsung LCD Panel , 60 cd / m² Industrial Lcd Screen 53.64×71.52 mm

Brand Name : Samsung

Model Number : LTP350QV-E06

Certification : ISO9001

Place of Origin : korea

MOQ : 1

Payment Terms : Western Union, MoneyGram, T/T

Supply Ability : 500PCS/DAY

Delivery Time : 2-3 Working Days after order confirmation

Packaging Details : Antistatic bag, Bubble Bag, Foam Box and Carton Box.

Panel Brand : Samsung

Panel Model : LTP350QV-E06

Panel Type : a-Si TFT-LCD , LCM

Panel Size : 3.5 inch

Resolution : 240(RGB)×320 , QVGA

Display Mode : TN, Normally White, Transmissive

Contact Now



LTP350QV-E06 Samsung LCD Panel , 60 cd / m² Industrial Lcd Screen 53.64×71.52 mm

Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.

LTP350QV-E06 Specification

Panel Brand :SAMSUNG
Panel Model :LTP350QV-E06
Panel Type :a-Si TFT-LCD , LCM
Panel Size :3.5 inch
Resolution :240(RGB)×320 , QVGA
Display Mode :TN, Normally White, Transmissive
Active Area :53.64×71.52 mm
Outline :64.3×87.1×4.85 mm
Surface :Hard coating (3H)
Brightness :60 cd/m² (Typ.)
Contrast Ratio :80:1 (Typ.)
Display Colors :262K (6-bit)
Response Time :40 (Typ.)(Tr+Td)
Viewing Angle :40/40/25/35 (Typ.)(CR≥10) (L/R/U/D)
Lamp Type :WLED
Signal Interface :Parallel RGB (1 ch, 6-bit) , 60 pins
Input Voltage :3.3/5.0V (Typ.)(DVDD/AVDD)


FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.

Panel Size :3.5 inch
Dot Resolution :240(RGB)×320 (QVGA)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :113 PPI
Aspect Ratio :3:4 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.0745×0.2235 mm (H×V)
Pixel Pitch :0.2235×0.2235 mm (H×V)
Weight :47.0/52.0g (Typ./Max.
Surface :Hard coating (3H)
Active Area :53.64×71.52 mm (H×V)
Outline Dimension :64.3×87.1 mm (H×V)
Outline Depth :4.25/4.85 (Typ./Max.) mm
Landscape or Portrait :Portrait type
Touch Panel :Embeded (4-wire Resistive)


Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel ModelBrandSizeResolution
LQ079L1SX06SHARP7.9"1536×2048
LQ079L1SX04SHARP7.9"1536×2048
LQ133M1JW08SHARP13.3"1920×1080
LQ156D1JX02SHARP15.6"3840×2160
LQ156Z1JW01SHARP15.6"3200×1800

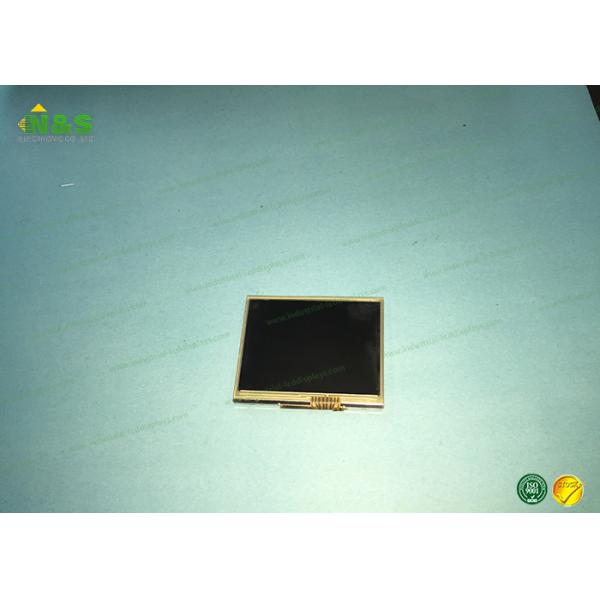

LTP350QV-E06 Picture

LTP350QV-E06 Samsung LCD Panel , 60 cd / m² Industrial Lcd Screen 53.64×71.52 mm
